Disassembly

sol-azy statically disassembles compiled Solana eBPF programs into a readable, instruction-by-instruction view.
This view is enhanced with immediate data decoding, especially for strings loaded from .rodata.

Overview

The disassembly engine in sol-azy builds upon sbpf-solana's instruction decoder.
It adds layers of audit-focused context by:

Labeling basic blocks (e.g., lbb_42)
Resolving immediate values from .rodata
Emitting annotated output into disassembly.out
Adding Rust-like comparison for better understanding

Example

Here’s a disassembly snippet produced by sol-azy:

entrypoint:
    mov64 r2, r1                                    r2 = r1
    mov64 r1, r10                                   r1 = r10
    add64 r1, -96                                   r1 += -96   ///  r1 = r1.wrapping_add(-96 as i32 as i64 as u64)
    call function_308
    ldxdw r7, [r10-0x48]
    ldxdw r8, [r10-0x58]
    ldxdw r1, [r10-0x38]
    mov64 r2, 8                                     r2 = 8 as i32 as i64 as u64
    jgt r2, r1, lbb_91                              if r2 > r1 { pc += 79 }
    ldxdw r1, [r10-0x40]
    ldxw r2, [r1+0x0]
    stxw [r10-0xa8], r2
    ldxw r1, [r1+0x4]
    stxw [r10-0xa4], r1
    mov64 r1, 0                                     r1 = 0 as i32 as i64 as u64
    stxdw [r10-0x40], r1
    lddw r1, 0x100004610 --> b"\x00\x00\x00\x00\xd0C\x00\x00\x08\x00\x00\x00\x00\x00\x00\x00\x00\x00\x00…        r1 load str located at 4294985232
    stxdw [r10-0x60], r1
    mov64 r1, 2                                     r1 = 2 as i32 as i64 as u64
    stxdw [r10-0x58], r1
    stxdw [r10-0x48], r1
    mov64 r1, r10                                   r1 = r10
    add64 r1, -136                                  r1 += -136   ///  r1 = r1.wrapping_add(-136 as i32 as i64 as u64)
    stxdw [r10-0x50], r1
    mov64 r1, r10                                   r1 = r10
    add64 r1, -164                                  r1 += -164   ///  r1 = r1.wrapping_add(-164 as i32 as i64 as u64)
    stxdw [r10-0x78], r1
    lddw r1, 0x100004210 --> b"\xbf#\x00\x00\x00\x00\x00\x00a\x11\x00\x00\x00\x00\x00\x00\xb7\x02\x00\x0…        r1 load str located at 4294984208
    stxdw [r10-0x70], r1
    stxdw [r10-0x80], r1
    mov64 r1, r10                                   r1 = r10
    add64 r1, -168                                  r1 += -168   ///  r1 = r1.wrapping_add(-168 as i32 as i64 as u64)
    stxdw [r10-0x88], r1
    mov64 r1, r10                                   r1 = r10
    add64 r1, -160                                  r1 += -160   ///  r1 = r1.wrapping_add(-160 as i32 as i64 as u64)
    mov64 r2, r10                                   r2 = r10
    add64 r2, -96                                   r2 += -96   ///  r2 = r2.wrapping_add(-96 as i32 as i64 as u64)
    call function_858
    ldxdw r1, [r10-0xa0]
    ldxdw r2, [r10-0x90]
    syscall [invalid]
    ldxw r1, [r10-0xa8]
    ldxw r2, [r10-0xa4]
    add64 r2, r1                                    r2 += r1   ///  r2 = r2.wrapping_add(r1)
    lsh64 r2, 32                                    r2 <<= 32   ///  r2 = r2.wrapping_shl(32)
    rsh64 r2, 32                                    r2 >>= 32   ///  r2 = r2.wrapping_shr(32)
    jne r2, 1337, lbb_58                            if r2 != (1337 as i32 as i64 as u64) { pc += 6 }
    lddw r1, 0x1000043e0 --> b"You win!"            r1 load str located at 4294984672
    mov64 r2, 8                                     r2 = 8 as i32 as i64 as u64
    syscall [invalid]
    mov64 r1, 987654321                             r1 = 987654321 as i32 as i64 as u64
    ja lbb_63                                       if true { pc += 5 }
lbb_58:
    lddw r1, 0x1000043e8 --> b"You lose!"           r1 load str located at 4294984680
    mov64 r2, 9                                     r2 = 9 as i32 as i64 as u64
    syscall [invalid]
    mov64 r1, 123456789                             r1 = 123456789 as i32 as i64 as u64

Annotating Immediate Loads

Instructions like:

lddw   r1, 0x1000043e0

point into .rodata. sol-azy:

Checks if imm >= MM_RODATA_START
Extracts the corresponding bytes from the .so
Uses the next MOV64_IMM (here, mov64 r2, 8) to determine the length
Displays a byte string: b"You win!"

This process is handled by:

#![allow(unused)]
fn main() {
pub fn update_string_resolution(program: &[u8], insn: &Insn, next_insn_wrapped: Option<&Insn>, register_tracker: &mut RegisterTracker) -> String
}

Support for sBPF v2+: Address Construction via mov32 + hor64 In sBPF version 2 and above, the use of lddw for loading 64-bit constants is forbidden. Instead, addresses are manually constructed using:
mov32  r1, 0x3000         ; load lower 32 bits
hor64  r1, 0x10000000     ; set upper 32 bits → r1 = 0x1000000000003000
sol-azy handles this by:

Tracking register values using a RegisterTracker

Do an "emulation" of mov and hor64

Resolving loads like ldxdw r2, [dst + off] where dst + off points into .rodata

Extracting and decoding the pointed memory, same as for lddw

This lets the disassembler annotate pointer-based loads even when addresses are assembled dynamically.

Visualization

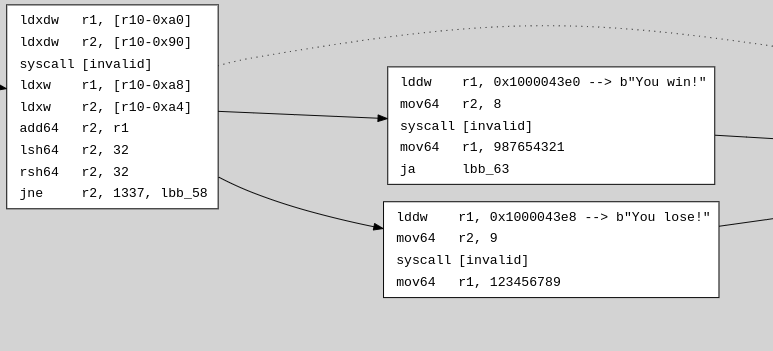

Here is an example of a control flow graph with disassembly and immediate data decoded:

Disassembly with .rodata decoded

Arrows represent jumps or branches
Blocks show disassembled instructions
--> b"...string..." indicates .rodata interpretation

Output Files

When running:

cargo run -- reverse --mode disass --out-dir ./out --bytecodes-file ./program.so

You get:

File	Description
`disassembly.out`	Main instruction listing with annotations
`immediate_data_table.out`	All tracked immediate memory ranges

Example from immediate_data_table.out:

0x1000043e0 (+ 0x43e0): b"You win!"
0x1000043e8 (+ 0x43e8): b"You lose!"

Tips

Enable --labeling to auto-gen labels.
Use mode = both to get disassembly + CFG together.
